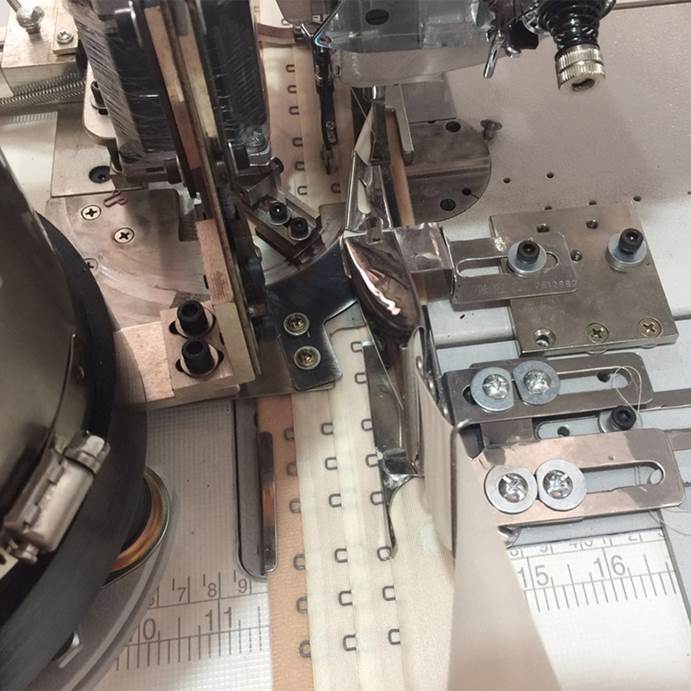

Bra Hook And Eye Making Machine
Main features: 1.Stitching pitches is adjustable controlled by micro-computer, easy and convenient operation 2.Discretional sizes and stitches. Once set, the program can be called out repeatedly 3.Displaying present sewing specification and finished quantity of hooks or eyes 4.Optional alarming.....
Print this Page
Bookmark this
Inquiry product
E-mail Us
Main features:
1.Stitching pitches is adjustable controlled by micro-computer, easy and convenient operation
2.Discretional sizes and stitches. Once set, the program can be called out repeatedly
3.Displaying present sewing specification and finished quantity of hooks or eyes
4.Optional alarming function. When for trail test, the alarms for threak break and short of hook & eye can be shut off.
5.Automatic alarm and stop when there is no tape or hook & eye. After put enough material, the system will start automatically.
|
Machine size |
Hook machine |
Rim machine |
|
1080*610*1620 |
860*610*1620mm |
|
|
Power used |
220V 50/60Hz 1 phase 3phases |
|
|
strap |
clip relamping (as customer requested) |
|
|
Hook buckle |
fixed size(as customers requested) |
|
|
operating control panel(sewing size) |
variable range of buckle spacing 9.6-300mm Needles spacing range at straight-line portion 1.65mm,1.95mm Needles counts are changaebles at straight-line portion |
|
|
Control system |
microcomputer r control |
|
|
Production quantity |
buckle ring 120/min (1 group 19mm,22 needles) 2.5M/MIN |
|
